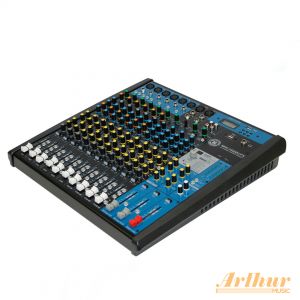

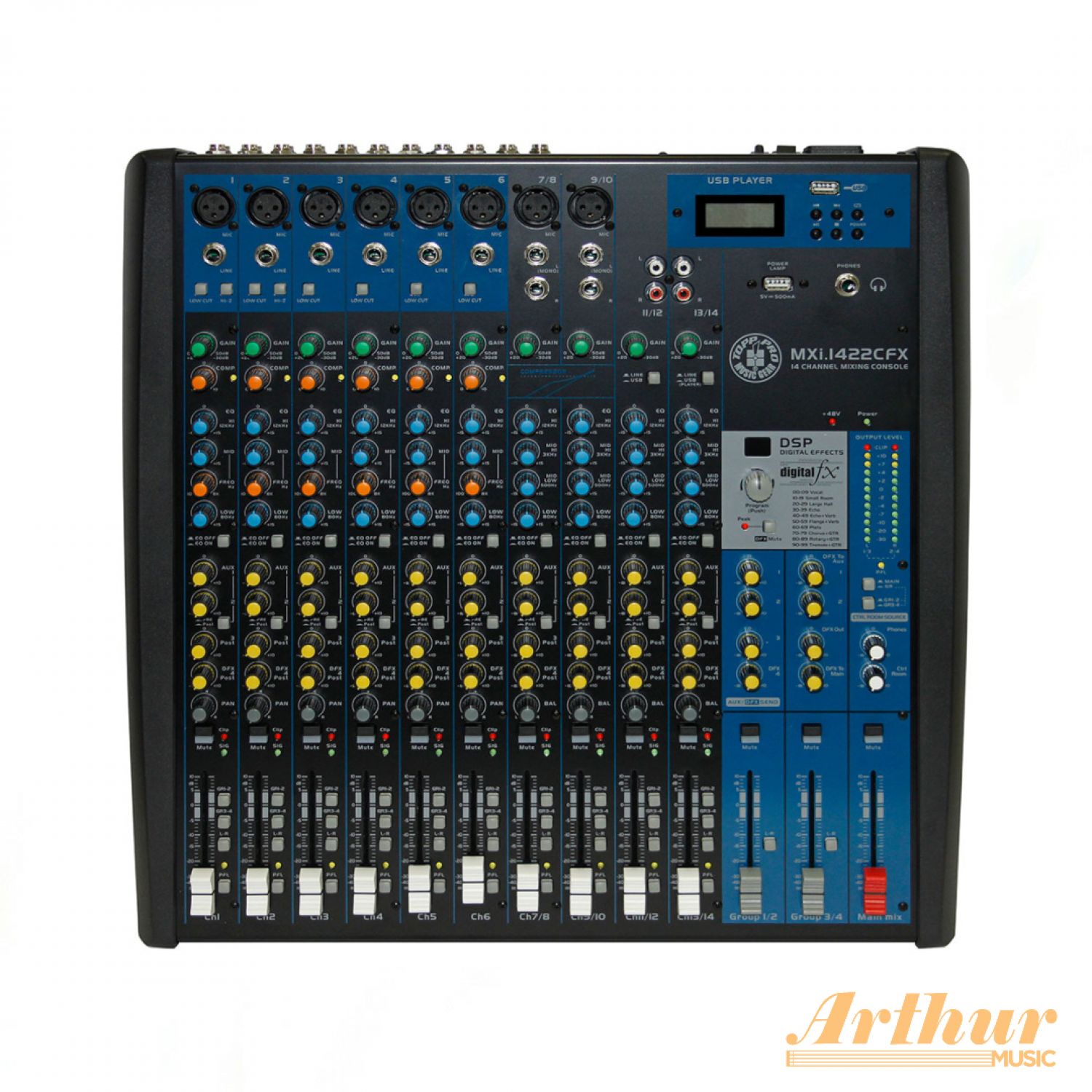

Topp Pro MXi 1422 CFX

6 entradas mono con XLR y conector TRS balanceado 2 entradas mono XLR adicionales.
4 entradas estéreo con conector TRS balanceado.
6 compresores en entradas MIC.
Ecualizador de 3 bandas con frecuencias medias paramétricas en todas las entradas mono y corte Lo.
4 envíos auxiliares (Aux 1-2 pre-post conmutables).
Funciones de silencio, solo, 2 pistas, sala de control, Phantom 48V.
4 subgrupos.
Procesador EFX interno de 24 bits.
Reproductor multimedia USB integrado.
13 faders.

Topp Pro MXi 1422 CFX

Mono channels

Microphone input: XLR with balanced
Frequency response: 10Hz to 55KHz,+/-3dB
Distortion (THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted
Gain range: 0dB to 50dB
Max. Input: +21 dB
LOW CUT: 75Hz
SNR: <-100dBr A-weighted
Phantom power: +48V with switch control
Line input: 1/4” TRS with balanced
Frequency response: 10Hz to 55KHz,+/-3dB
Distortion (THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range: +20dB~ -30dB

Compressor: GAIN: 0~9dB / THRESHOLD: 20dB--->5dB

Stereo input channels

Mic input: XLR with balanced
Line input: 1/4' TRS with balanced
Frequency response: 10Hz to 55KHz, +/-3dB
Distortion (THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range: +20dBu~ -30dBu
SNR: <-100dBr A-weighted

RCA input channels

RCA input: RCA with un-balanced
Frequency response: 10Hz to 55KHz,+/-3dB
Distortion (THD+N): <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range: +20dBu~ -30dBu
SNR: <-100dBr A-weighted

Channels EQ

Channel: Mono / Stereo
High: +/-15dB @12KHz / +/-15dB @12KHz
Mid: +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
Low: +/-15dB @80Hz / +/-15dB @80Hz

Impedances

Microphone input: 1.8K Ω
All other input: 10K Ω or greater
Tape out: 1K Ω
All other out: 120 Ω

DSP section (options)

A/D and D/A converters: 24bit
Type of effects: Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
Controls: 100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
FOOT-SW: TIP: FX - SLEEVE: GND

Main mix section

Max. MAIN MIX output: +26dBu XLR balanced (+20dBu un-balanced)
AUX range: OFF to +10dB
Fader range: OFF to +10dB
PHONES/CONTROL-ROOM range: OFF to +10dB
Hum & Noise: <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
Crosstalk: <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum

Power supply

Main voltage: 100-240V~ 50/60Hz
Fuse: T1.25A AC250V
Rated power consumption: 30W
